Testing the HP Jet Fusion 4200 3D Printer

3 min read

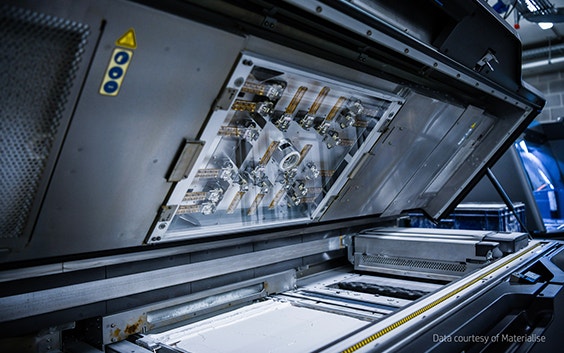

A  HP Multi Jet Fusion printer at Materialise's headquarters, with the lid open

The surface of Materialise Engineer Giovanni Vleminckx’s desk is covered in stone-grey 3D prints. Gears, hinges, interlocking links, and the odd Yoda-like figurine; the first test prints from the HP Jet Fusion 3D printer, first announced in November 2016. Materialise was privileged with prior access to the new technology before its official release, and Giovanni got the opportunity to run frequent tests.

Giovanni Vleminckx stands beside a HP Multi Jet Fusion printer holding a 3D-printed insole

“When I saw the machine first at formnext, in November 2016, I was quite impressed already because of its compactness and neatness. I’m used to large-scale industrial printers that don’t really prioritize a tidy look, so it was a nice surprise,” says Giovanni. “Now that I’ve had the chance to work together with HP on testing, I’m excited to have early access to the technology and help identify areas of future development.”

HP Multi Jet Fusion technology: how does it work?

HP Multi Jet Fusion, as a 3D printing technology, is powder-based and does not use lasers. The powder bed, housed in a large chamber, is heated uniformly at the outset. A fusing agent is jetted where particles need to be selectively molten, and a detailing agent is jetted around the contours to improve part resolution. While lamps pass over the surface of the powder bed, the jetted material captures the heat and helps distribute it evenly. Since the powder bed is already heated and melting is not based on laser movement, each printing layer takes the same time, leading to foreseeable build times.

The machine scores high on usability and reliability. It’s only been a few weeks of testing but I feel confident leaving the machine to its own devices. It doesn’t need constant monitoring once the build is in progress.

— Giovanni Vleminckx, Engineer at Materialise

At present, the material used by the machine is PA12, a polyamide. “The material has a very fine powder grain, enabling the production of very thin layers of 80 microns,” explains Giovanni. “That means the same material leads to high-density parts with lower porosity than it would with thicker layers. The fine grain of the powder would be especially suitable for detailed features and high-complexity parts. The surface finish is quite fine even without post-production finishing, and I can imagine that functional parts in the future may not need additional smoothing. Straight out of the machine, parts are a stone-grey color that takes well to color dyeing.

“The machine scores high on usability and reliability. It's only been a few weeks of testing but I feel confident leaving the machine to its own devices. It doesn’t need constant monitoring once the build is in progress.”

Close-up of color-dyed samples 3D printed using a HP Multi Jet Fusion printer

Testing: status quo and beyond

In the early weeks of the testing process, HP worked closely with two Materialise teams: Materialise Software and Materialise Manufacturing. At the outset, Materialise Software worked with HP to develop a Build Processor that connects HP’s Multi Jet Fusion technology to the Materialise suite of software for 3D printing.

“The HP Build Processor seamlessly integrates 3D printing software with the printer, allowing the user to assign a machine-specific build style to the platform, as well as slice and export data to the machine,” explains Giovanni. “Being involved in a software capacity at this early stage has afforded us a great opportunity to give Materialise software users a head-start on this technology.

HP and Materialise engineers then came up with a pool of testing parts, each with a specific ‘control factor’: a single-build hinge to test dimensional accuracy (if the accuracy is too low, the moving parts of the hinge would fuse together); a textured sample to check surface quality; a few identical parts oriented differently at various areas on the build platform to test build uniformity.

A cable organizer 3D printed by the HP Multi Jet Fusion printer
3D-printed cable twist
A part 3D printed by the HP Multi Jet Fusion printer
3D-printed MJF part
An insole 3D printed by the HP Multi Jet Fusion printer
3D-printed insoles

For Giovanni, the regular feedback rounds with HP to present findings were a fruitful exercise in defining priorities on both sides and identifying the most critical areas for future development.

“We’ve worked together on expanding the optimal build area of the build platform, on improving the dimensional accuracy. In parallel, there’s a similar process of research and validation on the software side with our Build Processor team. I’m very happy with how our findings are handled; HP has a large and eager support team that values our feedback.”

A HP Multi Jet Fusion printer installed in a room
HP Multi Jet Fusion printer
View of the build platform of the HP Multi Jet Fusion printer
Build platform of the HP Multi Jet Fusion printer
