General Guidelines

Wall thickness

Wall Thickness

In 3D printing, wall thickness refers to the distance between one surface of your part and the opposite sheer surface. For PA-AF (Aluminum Filled), we recommend a minimum wall thickness of 1 mm. High wall thickness can give you a strong solid surface, while lower wall thickness can create a more flexible surface.



If possible, try to hollow out your part. This avoids deformation and discoloration during the printing process. You can either hollow out your part without a surface hole, which means that unsintered powder will remain trapped inside, or you can design a strategically placed hole (two would be even better) so that the unsintered powder can be easily removed after printing. If the part needs to be reclosed, design a lid with a diameter allowing for 0.5 mm play between the part and the lid.

If your part has walls thicker than 9 mm, our production team may hollow out the part to prevent deformation and discoloration. For parts with wall thickness higher than 20 mm wall thickness, this is done by default. In that case, the powder will stay trapped inside.

Warpage and Deformities

Warpage and Deformities

We strongly recommend that you do not design large, flat plains in dimensions like an A4 page. In most cases, your model will deform. This process is called “warping”. Even if you create support ribs under your plane, it doesn’t solve the problem. It increases the chance of deformation even more. The key here is to avoid big flat planes.

Interlocking parts

Interlocking or Moving Parts

It is possible to print interlocking and moving parts or single-build assemblies in PA-AF (Aluminum Filled). Parts that are printed together should have a minimum clearance of 0.5 – 0.6 mm. If you want to print a chain, spacing between your surfaces is crucial. The more space you can afford the better. The more complex your part is, the more difficult it becomes for us to evacuate unsintered powder from the interior when the part is taken out of the 3D printer. Please get in touch with your local Customer Support Officer first before ordering parts of this kind to ensure printability and avoid disappointments.



When designing parts that need to be assembled, it’s important to maintain enough distance between the parts. A perfect fit in your CAD software does not necessarily ensure a perfect fit after printing because your software ignores the friction present in the real world. Therefore, always leave at least 0.6 mm between the different parts. For parts with large surfaces and wall thicknesses, you will need to maintain even more distance between the parts. In cases like these, please contact your local Customer Support Officer to check printability.

In order to help us print your parts with the best possible dimensions for assembly, please design your files with an orientation equal to the relative orientation of your parts in the final assembly.

Embossed and engraved details

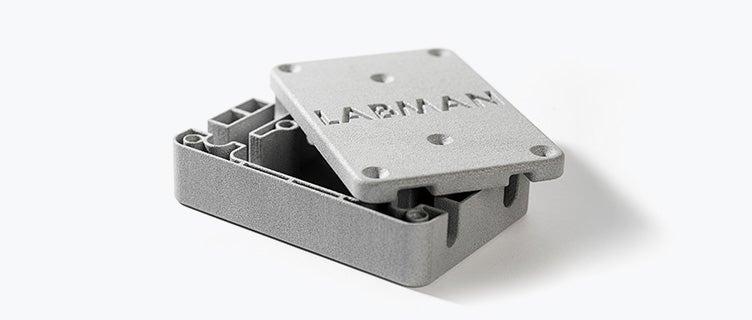

Embossed and Engraved Details

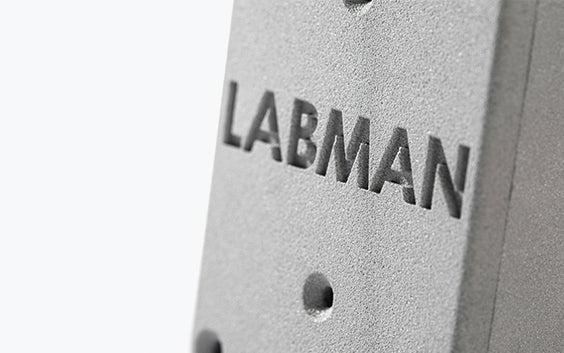

For engraved text or surface details, we recommend letters with a minimum line thickness of 1 mm, a depth of 1.5 mm, and an overall height of at least 4.5 mm. Embossed text or surface details should be thick enough that they will not break during production or transport. We recommend letters that have a line thickness of at least 0.8 mm, an overall height of at least 3 mm, and a depth of at least 0.8 mm.


Holes and Channels

Holes with a small diameter are exposed to a lot of heat during the sintering process. This can cause the powder inside the holes to become fused. To make sure that holes in your parts remain clear, design a diameter of at least 1 mm.

Longer internal channels can be difficult to clear out, especially if the powder is partially sintered together. We recommend a diameter of at least 3 mm for internal channels. In the case of complex channel geometries with several turns, please contact your local Customer Support Officer to check printability.


PA-AF parts can be easily milled, unlike parts printed with PA 12.

Hinges and springs

PA-AF is a harder material than PA 12, but it is also more brittle. These characteristics make PA-AF unsuitable for flexible parts, hinges, and springs; these applications are better served by PA 12.

Guidelines for Sealing

For sealing, we post-process your part with an aqueous solution to fill the small pores and close the outer surface or skin. Depending on the design, the sealing solution is manually applied or through dipping.



Due to the process described above, surfaces which cannot be accessed easily will most likely be treated less, leading to a lower level of sealing. For internal channels, make sure that the diameter is above 6 mm or the channels could get blocked with sealing agent.



Please be aware that the sealing agent improves how watertight your design is but does not guarantee a fully watertight product as this depends on several circumstances: the complexity of your design, the temperature of your surroundings, the pressure used, the liquid used etc. We recommend this finish for decorative use and advise testing your application first before fully using it.

File re.jpg

File requirements

We accept file formats STL, 3DS, 3DM, OBJ, WRL, MATPART, STP, SKP, SLDPRT, STEP, CATPART, IGES, MODEL, MXP, and MGX on Materialise OnSite.

Next to file formats we also have constraints related to the content of those files. To deliver the best possible quality and ensure traceability, we only allow 1 model per part to be ordered via our online platform OnSite. This means per file, there can only be one shell. If there are multiple shells in one file, we will only process it as it is recognized as one model or part meaning that the shells are intersecting or interlocking each other (if applicable see the technical specifications below). Otherwise your part will not be processed correctly.

Technical Specifications

Standard lead time Minimum of 4 working days, depending on part size, number of components and finishing degrees (offline orders)
7 working days (online orders)
Standard accuracy ±0.3% (with lower limit on ±0.3 mm)
Layer thickness 0.15 mm
Minimum wall thickness 1 mm
Minimum detail 0.3 mm
Minimum clearance 0.6 mm between parts that need to be assembled
0.5 –  0.6 mm between shells of an interlocking part
Maximum part dimensions 630 x 330 x 550 mm (online & offline orders)
Interlocking or enclosed parts? Yes
Surface structure Unfinished parts typically have a grainy surface but all kinds of fine finishes are possible. Laser-sintered parts can be sandblasted, colored/impregnated, painted, covered and coated.
