Driving pleasure, ergonomics and safety have always been important for the automotive industry. A rising new trend is smart mobility. This means applying innovation and modern technology to stimulate sustainable mobility. One of the goals of smart mobility is to cope with the negative effects of mobility such as traffic jams, pollution and traffic casualties.

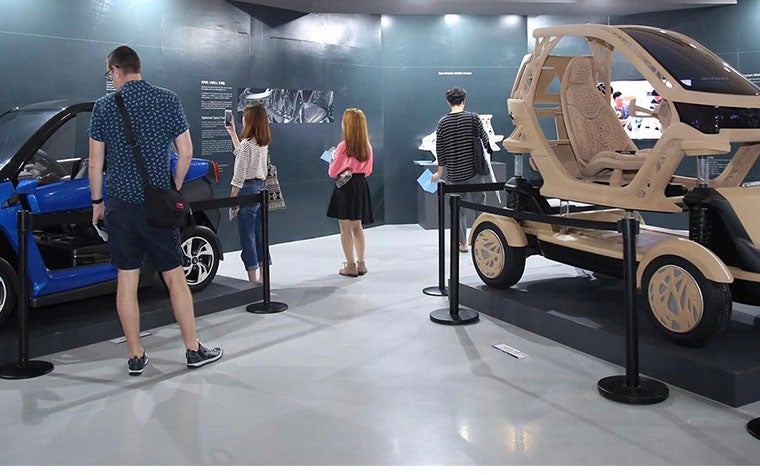

Under the theme of ‘Smart Design, Smart Mobility’, the Seoul Smart Mobility International Conference and Exhibition was the venue where experts and Seoul citizens could discuss and experience the present and the future of South Korea’s smart mobility. KLIO Design participated in the exhibition and presented their Open Mobility Structure Concept, powered by 3D-printed car parts.

People in a showroom looking at car designs
KLIO (right) presents their designs during the Seoul Smart Mobility International Conference and Exhibition 2016 at Dongdaemun Design Plaza, a design mecca in Seoul, South Korea.

The Open Structure Mobility Concept

KLIO Design’s Open Structure Mobility Concept allows the user to combine different car body designs on a small standardized platform according to the number of passengers, the purpose of use and the environment. This open concept encourages mutual cooperation, instead of supplier-oriented business.

The platform design is made up of optimized structures to reduce the weight of the car and at the same time ensure stability despite its small size. To avoid mold creation and allow for mass customization, the wheel cover, wheel guard, steering wheel and parts of the space frame were 3D printed.

Various views of a 3D design of a single-person vehicle

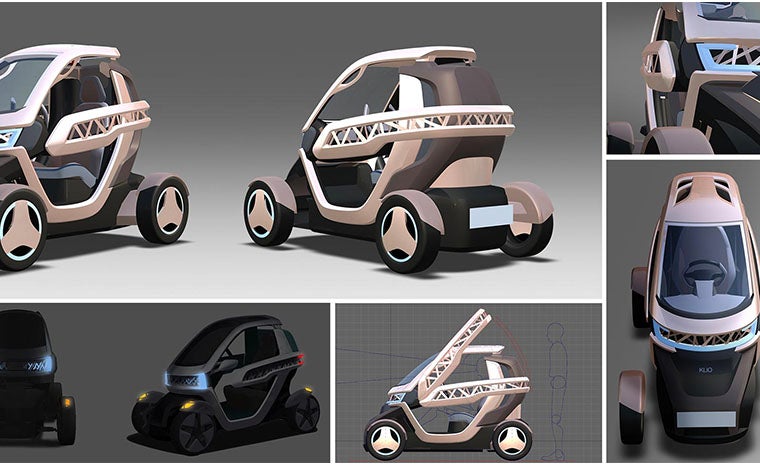

Design development of the Open Structure Mobility Concept (initial 3D data)

Optimizing the Design of the Car Frame

After designing the car frame using NURBS surfaces, it was topologically optimized, taking material property into account. Since the topologically optimized design couldn’t be 3D printed right away, Materialise 3-matic software was used to smoothen and redesign it on an STL level, making it 3D printable and reinforcing the strength of the structure. KLIO Design also used Materialise 3-matic to apply lightweight structures in the pillars. Since the frame needed to be connected to an underbody, every time the mounting points of the underbody changed, the frame required editing.

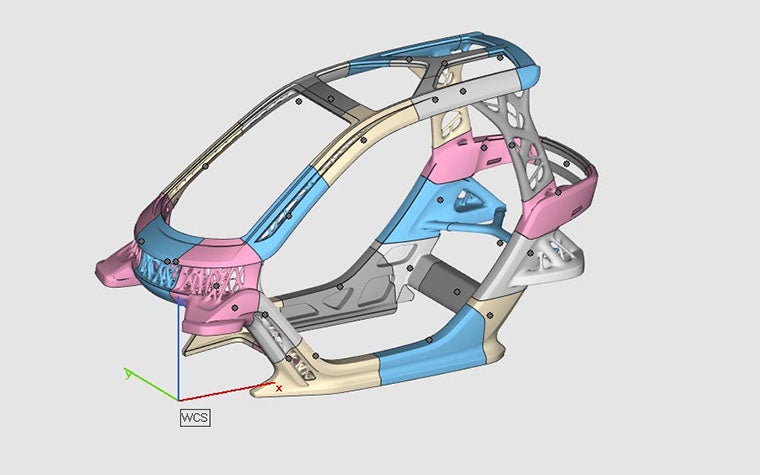

3D design of a single-person vehicle frame

Until the mounting points were set, there was iterative work of deleting structures and filling holes. Thanks to Materialise 3-matic, we could edit directly on an STL level and save time.

— Jeongche Yoon, General Manager at KLIO Design

Organic 3D structures of a vehicle frame

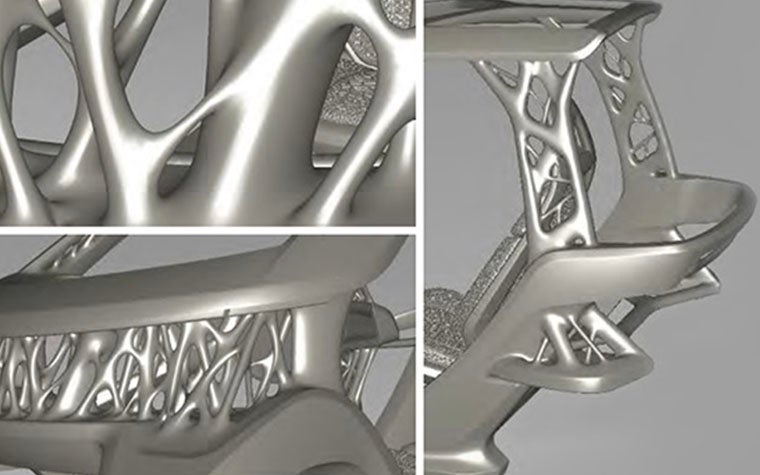

Lightweight pillars of the car frame designed in Materialise 3-matic

KLIO Design used 3-matic’s editing features when preparing their file for 3D printing. They cut the 3D model into pieces fitting the bed size of a printer and re-adjusted its thickness.

“Materialise 3-matic is a great software, whereas exporting high-quality designs with other software is not always possible. Compatibility with design data is also a great benefit.”

They then designed assembly parts in Alias software and with Materialise 3-matic, they divided the parts, hollowed them and created a hole to get rid of powder from the inside.

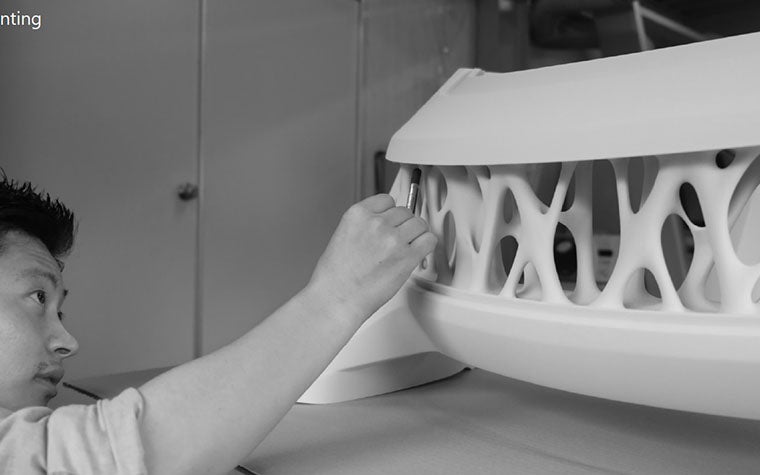

Man painting the front of a car frame

“One of the strengths of Materialise software is the ability to realize complex, organic structures and patterns that are difficult or even impossible to create with existing manufacturing methods, as well as the ability to visualize and edit huge data,” adds Yoon.

Optimizing the design of the car seat

Although the final shape of the car seat was more complicated than the one of the car frame, the work process was rather simple. KLIO Design divided the car seat according to its cushioning areas. Assuming that it would be difficult to assemble the printed parts, they decided to not cut the cushioning areas, but print them in one part.

They imported the car seat, designed with NURBS surfaces, to Materialise 3-matic and applied lightweight structures. Then they scaled and readjusted the beam thickness.

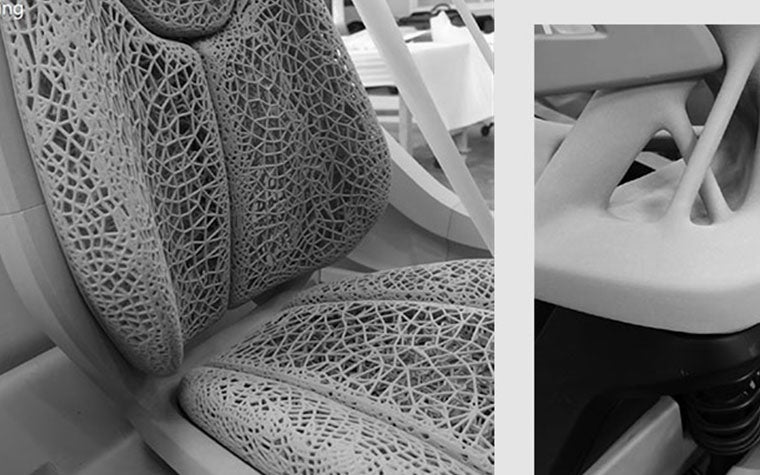

Organic shapes 3D printed as a car seat
Car seat with lattice structures

“Materialise 3-matic is intuitive when applying lattices and simple to create data for 3D printing. The best benefit for us is its format – you can work on your 3D data in a format lighter than STL when applying complex and complicated 3D lattices, which enabled us to work with a regular computer. This format didn’t require conversion to STL and the part could be printed directly on an EOS printer via the EOS Build Processor. Needless to say, we could convert to STL stably, which allowed us to work on the design conveniently.”

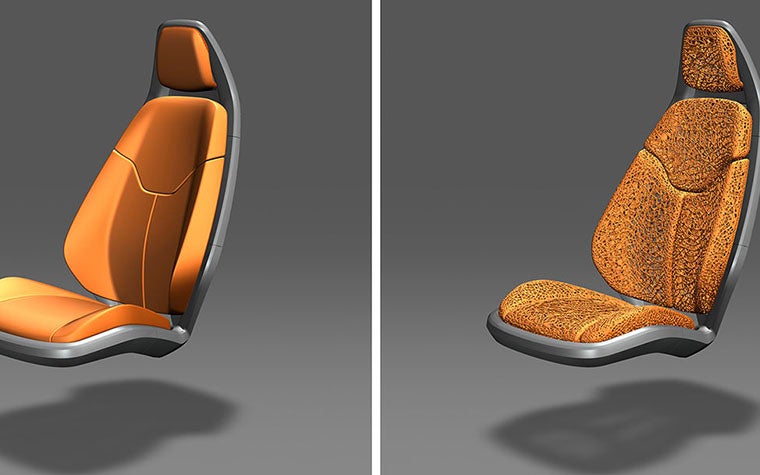

Digital render of a car seat before and after added organic webbing structure

Watch this video to experience how KLIO Design worked on the open mobility concept. Jump to 1:45 for the printed parts!
