Materialise Delivers Fully Functional Metal 3D-Printed Bike Frame to Kalkhoff Within Six Weeks

5 min read

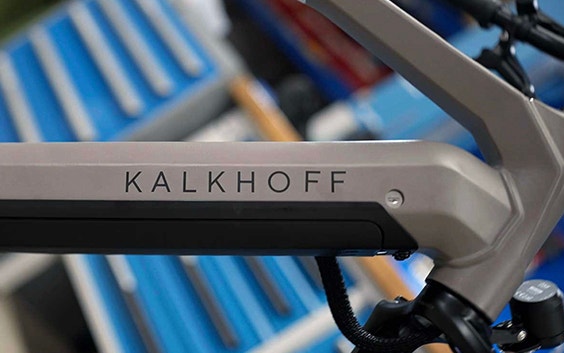

Metal 3D-printed bike frame with the name Kalkhoff on it

It takes years to produce a bike, so getting each production stage right is crucial for bike manufacturers. A critical period of product development is the prototyping phase. This is the chance to test the bike’s capabilities — such as the geometry, comfort, and support — before making any final adjustments for production.

German bike manufacturer, Kalkhoff, contacted Materialise for help creating a functional, metal, 3D-printed prototype of their new e-bikes. This collaboration ensured that the portfolio met the company’s high standards and produced bikes for customers in the shortest possible time frame.

The challenge

Create a functional, 3D-printed prototype of a new range of e-bikes

Kalkhoff is a German bike manufacturer with over 100 years of experience in the cycle industry, and their long and storied history means they know what it takes to make a good bike. However, product development for any new Kalkhoff bicycle is always a balancing act. In particular, designers need to maintain the unique geometry synonymous with Kalkhoff e-bikes while considering the additional parts and attachments included in the design. The company strives for its bikes to be comfortable, agile, and reliable to ensure a smooth and enjoyable riding experience for every customer.

The company tests each bike’s wheels beyond what’s normally expected in the industry to fulfill these goals. Usually, wheels must pass loads of up to 150 kg — but some manufacturers refrain from carrying out such tests. In comparison, Kalkhoff’s bikes can take around 170 kg. “Our business prides itself on providing our customers with the opportunity to cycle freely without limitations,” says Rik Maes, Industrial Designer at Kalkhoff Derby Cycle Werke GmbH. “Cycling should reflect our company motto: ‘Kalkhoff moves you everywhere,’” he says.

Man checking a bicycle wheel as the bike hangs upside down
Usually, wheels must pass loads of up to 150 kg while Kalkhoff’s bikes can take around 170 kg. Credit: Kalkhoff.

The company relies on rigorous tests carried out during the prototyping stage to maintain such levels. Kalkhoff needs drivable models where standards and customized parts can be mounted and checked to perfect the design, so the prototypes must look and feel exactly like the final bike. This is hard to achieve with plastic frames, so the company explored other avenues — mainly metal 3D printing.

Solution

Metal 3D-printed prototypes produced locally by AM experts

Kalkhoff previously used Materialise Manufacturing for plastic printed prototypes and was impressed by the service and quality. However, the Kalkhoff team recently became aware of Materialise’s aluminum 3D printing capabilities at a trade fair and further explored this avenue for their new e-bikes. “Kalkhoff is already a well-known customer of ours, which simplified things. And as our new Metal Competence Center for 3D printing in Bremen is close to Kalkhoff’s headquarters in Cloppenburg, it seemed obvious to continue the relationship for this project,” says Philip Buchholz, Innovation Manager Metal 3D Printing at Materialise.

Initially, Kalkhoff’s design and engineering team created the 3D models and converted them into a printable file. The team then worked with Materialise to optimize the designs and choose the most favorable aspects before printing the model. Finally, the multi-part frame was welded, heat-treated, and straightened by a dedicated chain of suppliers and additive manufacturing (AM) experts. “Kalkhoff benefited from our expertise and state-of-the-art 3D manufacturing network that processes over 30 materials when switching from plastic to metal,” explains Philip.

Two Materialise employees standing side by side
3D printing software with Kalkhoff bicycle part designs showing in it

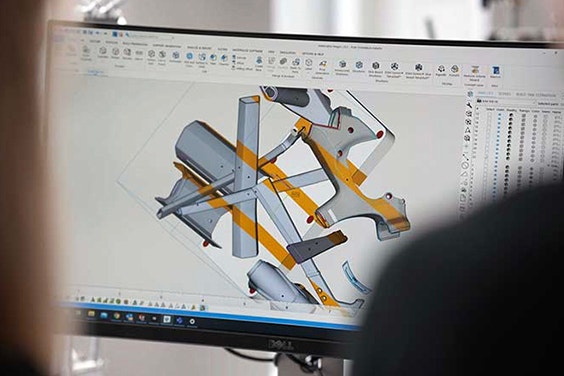

Kalkhoff’s designers worked with Materialise to optimize the designs and choose the most favorable aspects before printing the model.

“The installation space for metal 3D printers is rather limited, so it was necessary to complete the frame in several segments," explains Philip. "After printing, the frame was welded and tested at our reliable partner, Seefried GmbH in Bremen. ACTech took care of the heat treatment of the welded frame, which was performed in two steps — solution annealing and artificial aging," he continues.

Certain steps were carried out in parallel to streamline the process even further. “While 3D printing individual components, the design welding and heat treatment of the frame was done simultaneously, using CAD data of the bike frame,” explains Michael Röhner, Product Manager Metal 3D Printing at ACTech. “Situations like this, and moments such as after the annealing stage (that require real-time measurements of the frame with millimeter-accurate geometry) are not possible without close cooperation and the expertise of all those involved,” he says.

Final metal part of the bike frame
ACTech took care of the heat treatment of the welded frame, which was performed in two steps — solution annealing and artificial aging.

Due to the bike's build, factors such as speed, communication, and location were pivotal when producing the metal prototypes. “Communication with the Materialise team was open, transparent, and fast, which helped construct the prototypes. We share the same mindset and view on quality,” says Rik. “In addition, producing our frames with their local partners meant we could save time, testing more quickly without worrying about long transportation distances.”

Result

Functional prototype produced within six weeks, exceeding the strictest tests

Typically, the complete development of a bike takes between 2 – 2.5 years. But using metal 3D printing and AM experts in the area saved significant time in the last development stage. “We managed to deliver the whole frame within six weeks from start to finish,” says Philip. “This new process will save around three months in the development phase,” adds Rik.

For Kalkhoff, build quality is essential. And for the metal 3D-printed prototype, the manufacturing team managed to reposition the cuts on the bike to consider existing loads to avoid peak stress in the welded joints.

Close-up view of the metal 3D-printed bicycle frame
Close-up view of the underside of the metal 3D-printed bicycle frame

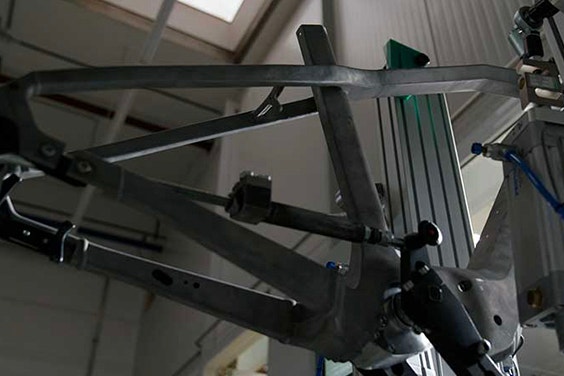

For Kalkhoff, build quality is essential, as correctly formed welds are one of the company’s distinctive trademarks.

The whole team was excited to see and test the final metal 3D-printed prototype. Furthermore, the aluminum frame is a fully functional prototype, a distinct advantage over the plastic variations that are mainly for promotional purposes. "We learned that a 3D-printed aluminum frame is very rideable,” says Rik. Changing the material enabled the Kalkhoff team to perform realistic and accurate function tests and execute checks for the assembly of add-on parts. “The motor flange and bearing of the fork are particularly important interfaces to check for functionality and safety,” says Philip.
“We subjected the bike to one of our most dynamic load tests of 170 kg without any problems. That surprised us a bit; we’ve been very impressed from a technical standpoint,” continues Rik.

Apart from functional testing, the metal prototype is also suitable for events. Customers can test ride the bike at trade fairs, thus gaining brand exposure before the commercial launch. Rik emphasizes the importance of such demos for brand awareness and the benefits of 3D printing in general.

Person riding the Kalkhoff bike on the street
The metal prototype is suitable for events and test rides.

“AM is ideal for our tests and events. For example, our Kalkhoff Brand World exhibition is an excellent place to showcase such prototypes. Also, there’s a great opportunity to manufacture more productively and sustainably in the future, as there’s less material loss with 3D printing.

“Metal 3D printing has surpassed our expectations, and we can make changes at short notice because no tools or molds were specifically needed to be built for this model. In the development phase or the ‘engineering design freeze,’ we will have mobile design prototypes where we can test all the selected parts. This has never been possible. Thanks to metal 3D printing, we can have test results faster and move quicker in our production cycle. That’s a good thing for us, as we’re first to market with innovative bikes for our customers.”
