Pressure Plates & 3D Scanners

Start on the right foot with state-of-the-art pressure plates and 3D scanners. Choose the device that suits your practice best or combine them for a complete, in-depth measuring process.

footscan pressure plates

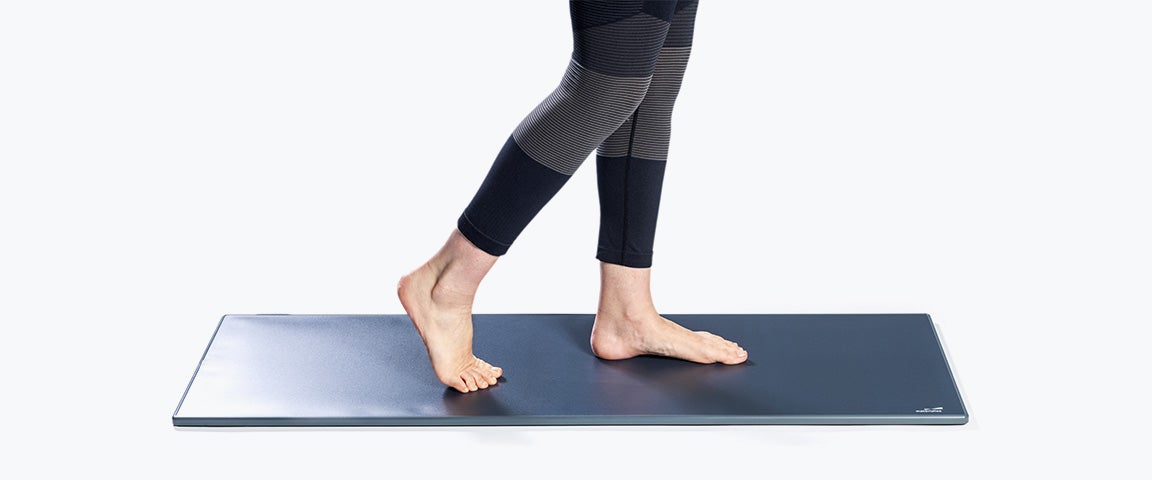

Person standing on a pressure plate with their right leg while the left leg is slightly lifted behind them

Entry level

These plug-and-play footscan systems are affordable without sacrificing performance. They’re easy to transport in the optional travel case.

  • 0.5 meter
    The smallest entry-level pressure plate. Ideal for travel or standing tests.
  • 1 meter
    This larger plate captures a complete gait cycle. It’s ideal for balance measurements like golf swings.
  • 1.5 meter
    This option is a professional solution for gait and running research. It’s durable and features a new black housing design.
Person standing on a pressure plate in running position, with one leg slightly bent at the knee

Advanced level

These high-speed footscan systems offer more scanning power and a selection of plate sizes. Take precise plantar pressure measurements with high-density sensors at a scanning rate of up to 300Hz or 300 measurements per second.

  • 1 meter
    This plate’s high-speed measurements and length offer more comfortable and realistic measurements with no need to target the footsteps. This system includes our 2D interface box.
  • 2 meter
    Capture multiple steps at high speed. This system includes our 2D interface box.
Person standing on a pressure plate, with their right foot flat on the ground and their left leg lifted slightly in front

High-end level

These full-option, high-speed footscan systems combine scanning power with the integration of third-party products such as force plates, EMG systems, motion capture systems, and much more. Take precise plantar pressure measurements with high-density sensors at a scanning rate of up to 300Hz or 300 measurements per second.

  • 1 meter
    This plate’s high-speed measurements and length offer more comfortable and realistic measurements with no need to target the footsteps. This system includes our 3D interface box.
  • 2 meter
    Capture multiple steps at high speed. This system includes our 3D interface box.

3D scanners

Person standing with one foot on the iQube E100 scanner and one foot on the ground

iQube E100

iQube E100 is a fast, lightweight, and accurate 3D scanner with a single camera. It’s created specifically for portable use and can scan feet, lasts, and foam boxes.

Technical information

  • 1 camera
  • Output format: STL, OBJ

Software

  • 3D scan module
  • Automated length, width, and arch-height calculations

Single/dual: Single foot
Dimensions of scanner body: 540 x 290 x 80 mm
Weight: 6 kg/13.22 lbs.
Measurement standard deviation: 1 mm/0.039”
Scan time:  5 – 7 seconds
I/O: 1x USB 2.0. (1.8 m – cable A-B)
Supply voltage: 100 – 240 V AC/50 – 60 Hz

Person standing with one foot on the iQube E500 scanner and one foot on a platform

iQube E500

iQube E500 is for orthotics manufacturing and is very fast and accurate. The portable casing includes an integrated step for easy use.

Technical information

  • 5 cameras
  • Output format: STL, OBJ

Software

  • 3D scan module
  • Automated length, width, and arch-height calculations

Single/dual: Single foot
Dimensions of scanner body: 700 x 380 x 200 mm
Weight: 17 kg/37.47 lbs.
Measurement standard deviation: 0.5 mm/0.020”
Scan time: 5 – 9 seconds
I/O: 1x USB 2.0. (1.8 m – cable A-B)
Supply voltage: 100 – 240 V AC/50 – 60 Hz

Person standing with one foot on the Tiger scanner and one foot on a clear platform

Tiger

This high-quality 3D scanner is designed for orthotists, footwear manufacturers, and designers. With this scanner, you can scan lasts, feet, foam boxes, hands, insoles, and shoes.

Technical information

  • 9 cameras: 1 color, 8 monochrome
  • Output format: STL, OBJ

Software

  • 3D scan module
  • Automated length, width, and arch-height calculations

Single/dual: Single foot
Dimensions of scanner body: 730 x 430 x 320 mm
Weight: 26 kg/57.32 lbs.
Measurement standard deviation: 0.5 mm/0.020”
Scan time: 5 – 15 seconds
I/O: 1x USB 2.0. (1.8 m – cable A-B)
Supply voltage: 100 – 240 V AC/50 – 60 HZ

Accessories

Interface box

2D interface boxes are required for advanced level systems and 3D interface boxes are required for high-end level systems. The 3D interface box allows you to sync and trigger inputs and outputs, and integrate third-party products such as force plates, EMG systems, and motion capture through high-speed cameras.

View of the input options on the interface box

Frequently asked questions

The future is now. Are you in?

We support healthcare professionals by offering an end-to-end solution that combines advanced digital motion capture technology, analysis software, and 3D-printed orthotics.
