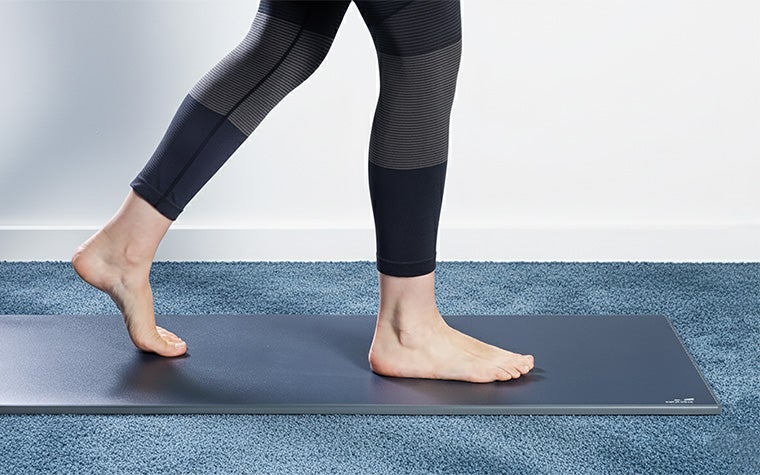

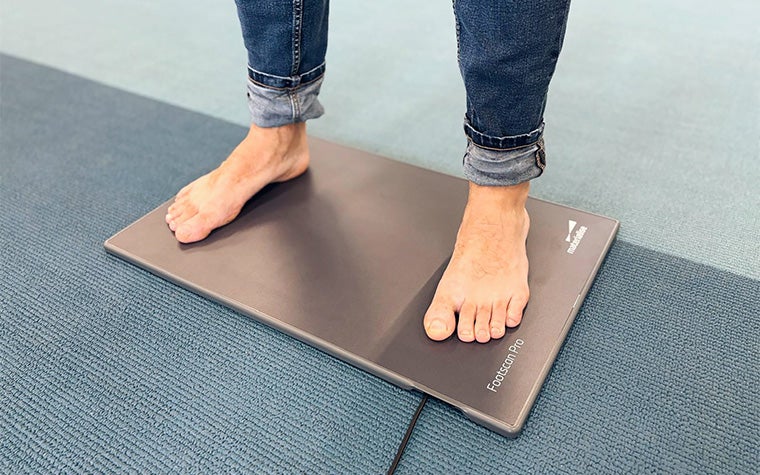

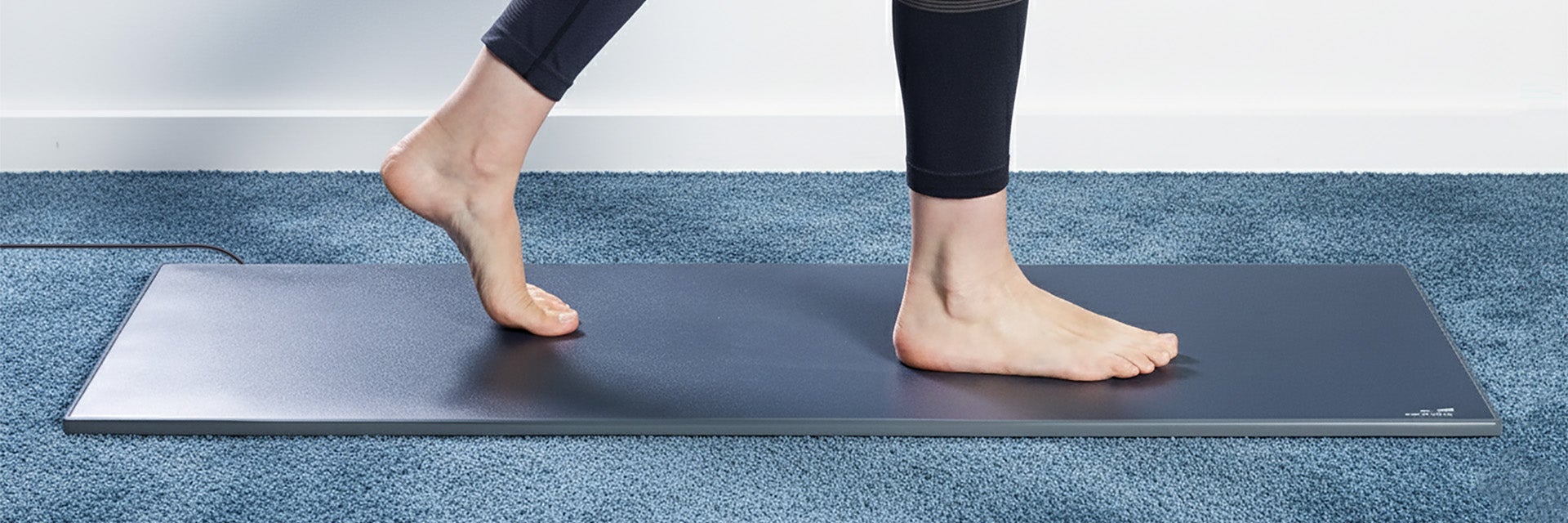

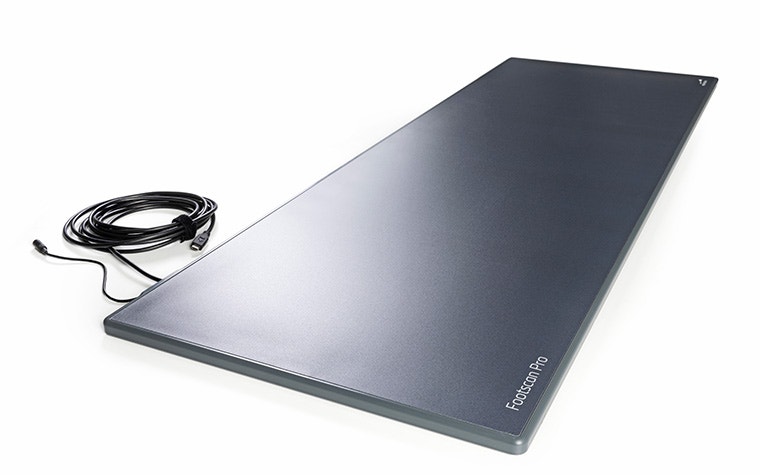

Pro Level Pressure Plate

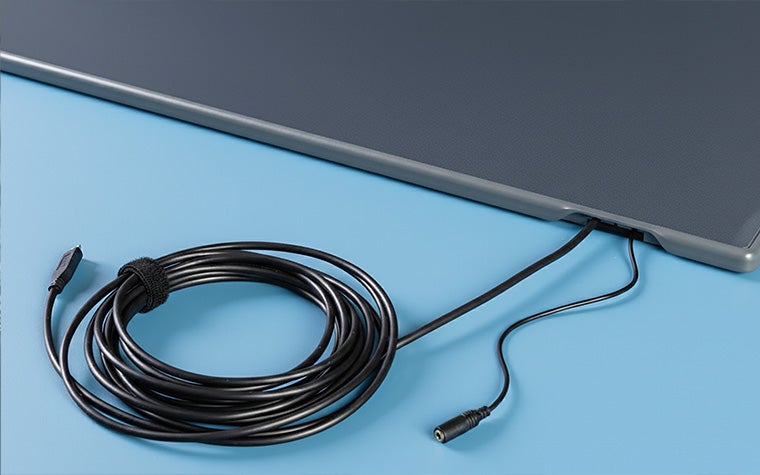

The Pro Level plate connects directly to your laptop via USB Type-C. You will not need any additional hardware; however, you will require a Footscan license.

Below you can find the minimum requirements for the Materialise Footscan software:

Operating system

• Windows® 10 (64-bit)

CPU

• x86 architecture*
• Support for AVX 1 and AVX 2 instruction sets
• 7th-generation Intel® Core™ i3/AMD Ryzen 3/Newer equivalents

RAM

• 8 GB

Free disk space

• 2 GB to install
• Database size**

Screen resolution

• Full HD (1920 x 1080)

GPU

• DirectX 12 or Vulcan-supported integrated drivers

Internet connection***

• At least 2 mb/s upload speed

USB ports

• USB 2 for Footscan plates (Gen 1), 3D scanners, or dongle
• USB-C for Footscan Pro Level pressure plate

_{* ARM architecture not supported}

_{** Required HDD or SDD disk space is dependent on database size (1 patient takes on average 50 MB. E.G., 100 patients equal on average 5 GB)}

_{*** Only required for ordering insoles, automatic downloading of config/calib files, and use of the auto-update server to download newer versions}

_{It is recommended to use our software within a hardware and/or network environment in which cybersecurity controls have been implemented, including anti-virus and use of firewall. It is also recommended not to leave the workstation on which Materialise Footscan software is running unattended and to ensure the workstation is password-protected.}

_{It is not guaranteed that the Footscan software runs correctly from within a virtual machine. Running from a virtual machine might cause connection problems with the plate or prevent the software from functioning correctly. It is advisable to run the software directly on the native operating system.}

_{It is not guaranteed that the Footscan software runs correctly on mobile devices, such as tablets. Running on mobile devices might cause connection problems with the plate or prevent the software from functioning correctly. It is advisable to run the Footscan software on non-mobile devices.}

_{It is not guaranteed that the Footscan software runs correctly on a multiple-monitor setup with different screen resolutions. Moving the Footscan software from one screen to another with a different resolution may deform the interface, making it difficult to use the Footscan software.}

This plate delivers force-platform-level accuracy, demonstrating exceptional reliability in clinical and research settings.

Yes, Pro Sync technology allows seamless integration with force plates, EMG systems, motion capture devices, and more.

Yes, the Pro Level plate meets all regulatory standards for medical devices in accordance with ISO 13485, ensuring credibility and compliance in clinical environments.

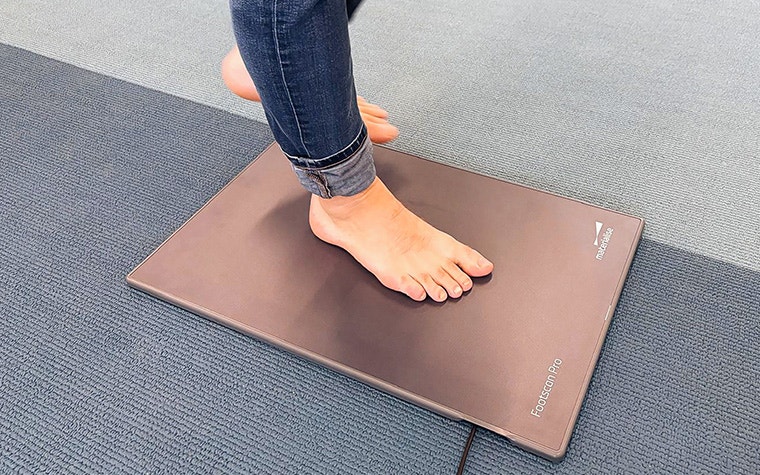

The plate requires only five steps per foot to deliver excellent repeatability across all zones, but three steps are often sufficient for very good results in clinical applications.
