Agilus

Agilus is a flexible, rubber-like resin with superior tear-resistance and elongation at break. It is ideal for concept models and rapid prototyping of rubber components like grips, seals, and non-slip surfaces, or other components that will be subject to repeated flexing and bending.

Get an instant quote

Talk to our team

Close-up view of two black 3D-printed bellows made from Agilus using PolyJet

기술 사양

Maximum part dimensions	350 x 250 x 100 mm
Standard accuracy	0.1 – 0.3 mm (varies depending on geometry, part orientation and print size)
Layer thickness	0.032 mm
Minimum wall thickness	1 mm
Minimum detail size	0.5 mm
Interlocking or moving parts	Yes
Internal channels	No
Surface structure	Slightly rough, matte surface

데이터시트

매개 변수	가치	구성 단위	방법
Tensile strength ASTM D-412	2.4 – 3.1	MPa	ASTM D-412
Elongation at break ASTM D-412	220 – 270	%	ASTM D-412
Hardness Scale A	30 – 35*	Shore A	Scale A
Tensile tear resistance ASTM D-624	4 – 7	Kg/cm	ASTM D-624
Compressive set ASTM D-395	6 – 7	%	ASTM D-395
Density ASTM D-792	1.14 – 1.15	g/cm³	ASTM D-792

Actual values may vary with build conditions and in relation to the part’s geometry and orientation. Shore values are provided by Stratasys.

*Please note that Agilus is easier to bend than rubbers of the same Shore A hardness.

Please get in touch with our team for more information and guidance.

PDF로 다운로드

Design guidelines

Every material has specific requirements to achieve a successful print. Before designing your next Agilus part, review our guidelines to ensure optimal results.

Read the guidelines

Finishing degrees

The right finish can transform your print into a product. Explore the post-production finishes we offer for this material. If you have any questions or special requests, get in touch with us.

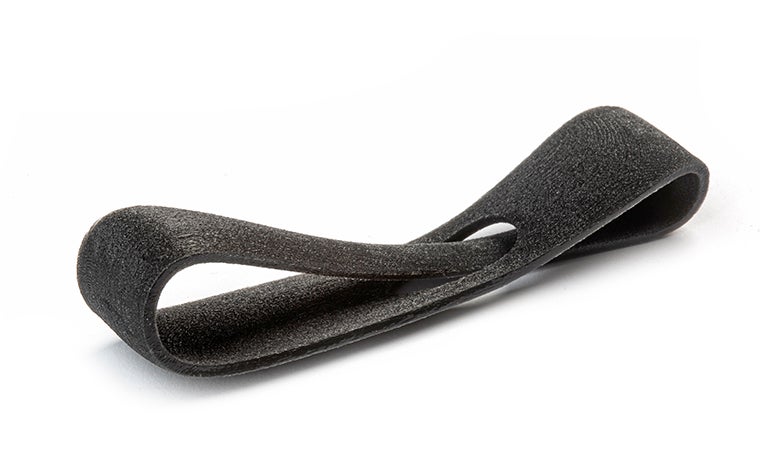

Basic finish
