VersaClear

A cost-effective, versatile all-rounder for prototypes and models with the highest UV stability in our stereolithography portfolio. This robust, translucent, water-resistant resin combines reliable performance with a clear, professional finish and great detail resolution for intricate and precise designs.

Get an instant quote

Talk to our team

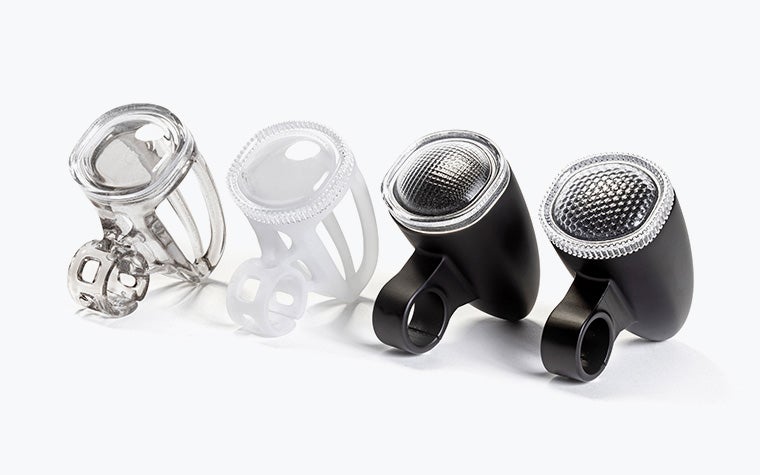

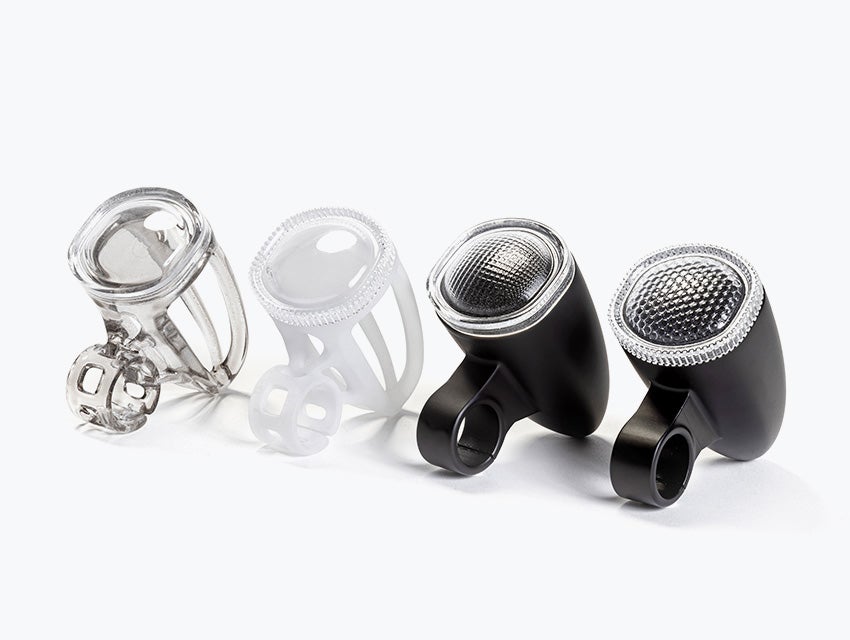

Four 3D-printed bicycle light housings made with VersaClear displayed in a row, showing different shades, from transparent and white prototypes to finished black units with textured reflective lenses.

技術仕様

Maximum part dimensions	2,000 x 700 x 788 mm 1,100 x 690 x 590 mm (online orders)
Standard accuracy	±0.2% (with a lower limit on ±0.2 mm <100mm)
Layer thickness	0.1 mm
Minimum wall thickness	1.2 mm (same for online orders)
Minimum detail size	0.5 mm
Interlocking or moving parts	No
Internal channels	Yes, but support structures may remain within channels
Surface structure	Smooth, translucent surface with visible building layers

データシート

パラメーター	価値	単位	方法
Density ASTM D257	1.19	g/cm³	ASTM D257
Tensile strength DIN EN ISO 527-5A	38	MPa	DIN EN ISO 527-5A
Tensile modulus DIN EN ISO 527-5A	2,200	MPa	DIN EN ISO 527-5A
Flexural strength DIN EN ISO 178	63	MPa	DIN EN ISO 178
Flexural modulus DIN EN ISO 178	1,500	MPa	DIN EN ISO 178
Impact strength DIN EN ISO 179-1 (Notched, Charpy)	2.7	kJ/m²	DIN EN ISO 179-1 (Notched, Charpy)
Elongation at break DIN EN ISO 527-5A	11.9	%	DIN EN ISO 527-5A
Hardness DIN EN ISO 7619	80	Shore D	DIN EN ISO 7619
Heat deflection temperature DIN EN ISO 75	47	°C	DIN EN ISO 75

Actual values may vary with build conditions and in relation to the part’s geometry and orientation.

Please get in touch with our team for more information and guidance.

PDFをダウンロードする

Design guidelines

Every material has specific requirements to achieve a successful print. Before designing your next VersaClear part, review our guidelines to ensure optimal results.

Read the guidelines

Finishing degrees

The right finish can transform your print into a product. Explore the post-production finishes we offer for this material. If you have any questions or special requests, get in touch with us.

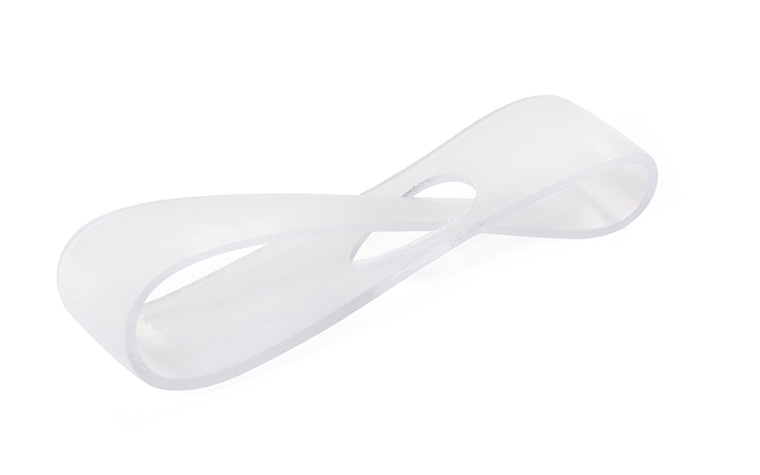

Basic finish
