ProtoGen White is suitable for general purpose applications with ABS-like specifications. A resilient material with good surface quality and thermal properties, ProtoGen White is ideal for markets that demand accurate RTV (room temperature vulcanized) patterns, highly detailed parts and durable concept models. Applications include impellers, ductwork and connectors, automotive housings, dashboard assemblies and high-end finished models.

Technical Specifications

Standard lead time Minimum of 3 working days , depending on part size, number of components and finishing degrees (offline orders)
4 working days (online orders)
Standard accuracy ± 0.2% (with lower limit on ± 0.2 mm)
Minimum wall thickness 0.8 mm
Layer thickness 0.1 mm
Maximum part dimensions 2100 x 700 x 800 mm (offline orders)
1100 x 690 x 590 mm (online orders)
Surface structure Unfinished parts typically have visible building layers on the surface but post-production finishes can achieve different effects, from high glosses to coarse textures. Stereolithography parts can be sandblasted, smoothed, colored/impregnated, painted, varnished, covered and coated.

Datasheet

  Units ASTM# Range
Density g/cm³     1.18 – 1.2
Tensile Strength MPa  D638M 43.8
Tensile Modulus MPa  D638M 2310
Elongation at Break  D638M 16
Flexural Strength MPa  D790M 70.5
Flexural Modulus MPa  D790M 2130
Notched Izod Impact J/m  D256A 22
Hardness Shore D D2240 88
Water Absorption % D570-98 0.68%
Glass Transition Temperature °C E1545-00 57 – 59
Heat Deflection Temp °C D648-98c at 0.46 MPa: 56
at 1.82 MPa: 47

Actual values may vary with build condition

Finishing Degrees

Finishing Support removal Curing Sandblasting Smoothing Primer Coating/Paint

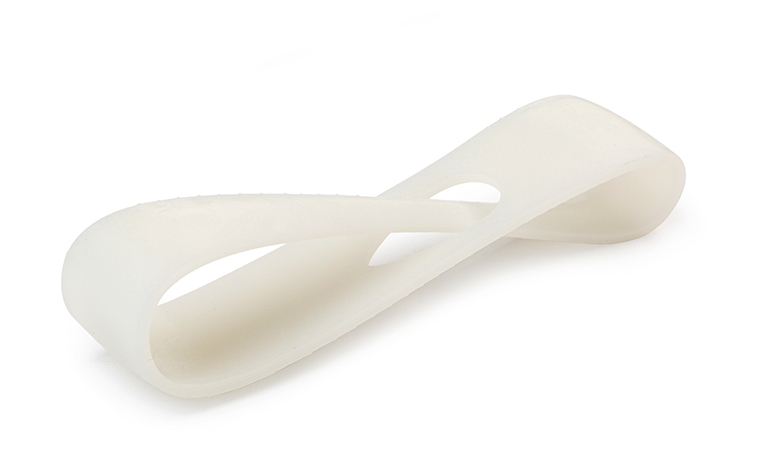

Basic

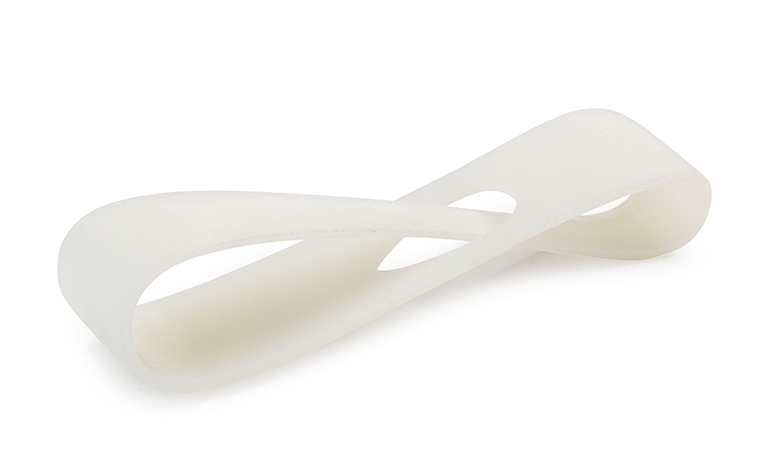

Support Marks Removed

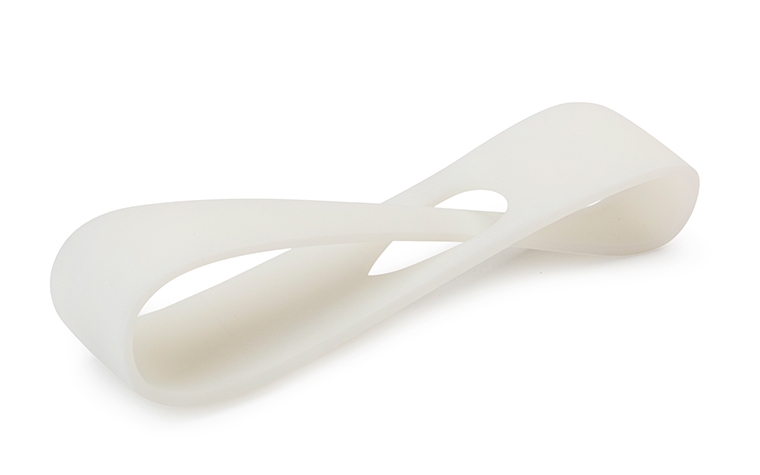

Normal
Building layers not visible

Spray Paint
Spray painted according to RAL color
Dead Matte Paint
Our most matte option, with gloss factor of 10%
Matte Paint
Gloss factor of 30%
Satin Paint
Gloss factor of 50%
High-Gloss Paint
Our most glossy option, with gloss factor of 90%
Soft Touch
Soft touch coating according to RAL color (translucent)
Fine-Texture Paint
Matte color paint with fine texture

How Does Stereolithography Work?

Stereolithography is a laser-based technology that uses a UV-sensitive liquid resin. A UV laser beam scans the surface of the resin and selectively hardens the material corresponding to a cross section of the product, building the 3D part from the bottom to the top. The required supports for overhangs and cavities are automatically generated, and later manually removed.
